marble granite aluminum sheet paneluses roller coating and spraying production process to apply stone texture on the surface of aluminum plate, giving aluminum plate the appearance and feel of stone, making aluminum plate more decorative.

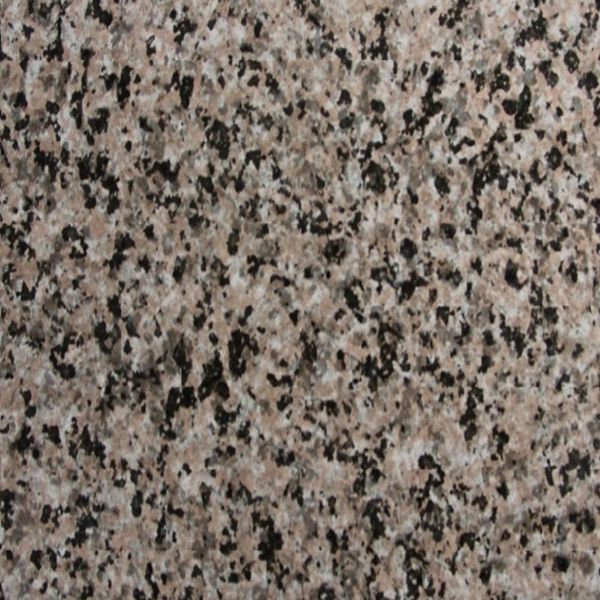

Common marble granite aluminum sheet panel has imitation marble texture Aluminum plate, gray stone pattern aluminum plate, brick pattern aluminum plate, granitepattern aluminum plate, etc.
Commonly used in the production of marble aluminum composite panel (ACP), or indoor and outdoor building curtain walls, home decoration, etc.
Specificationsfor marble granite aluminum sheet panel
The marble granite aluminum sheet plate is light in weight. Under the same area, the weight of the aluminum plate is only 1/10 of the brick wall, 1/15 of the dry-hanging marble and granite curtain wall, and 1/7 of the concrete hanging plate.
Common marble granite aluminum sheet panel specifications are as follows:
- Alloy: 1000, 3000, 5000 series, etc.
- Thickness:2.0mm -5.0mm, usually less than 2.5mm for indoor use, and more than 3mm for outdoor use. The general specifications are 3mm, 4mm, 5mm.
- Specifications:1000*2000, 1220*2440, 1200*2400, 1500*3000, etc.
- Certification: CE, ISO, SGS, etc.
Marble granite aluminum sheet coating
The marble granite aluminum sheet plate is based on the ordinary aluminum plate and processed through roller coating or spraying process, so that the surface of the aluminum plate has a strong stone three-dimensional effect, which is extremely lifelike and natural.
PVDF coating
For outdoor exterior walls, the surface coating needs to have extremely strong weather resistance and UV resistance to maintain long-lasting colors and clear patterns without fading. Therefore, the stability of the coating is required to be high, and fluorocarbon roller coating is often used.
Use scenario: outdoor
Coating type: double coating or triple coating
Coating thickness: double coating thickness is about 25-30μm, triple coating thickness is above 30μm, and the coating is more stable
PE coating
For most indoor places, there is no need to fight against ultraviolet rays and outdoor wind and sun for a long time. Accordingly, cost-effective PE polyester double coating can be used as imitation stone grain paint, andthe patterns and colors are more diverse, depending on your specifications.
Use scenario: indoor
Coating type: double coating
Coating thickness: about 25μm
Powder coating
For special-shaped marble granite aluminum plates, such as special-shaped, punched, curved, etc., powder spraying is the most commonly used coating method, The coating thickness is greater than 30μm.
Marble granite aluminum alloy series
1000 series marble granite aluminum
The imitation marble aluminum veneer stone pattern is close to nature, beautiful and elegant, breaking the traditional curtain wall solid color style decoration; the marble-patterned wall no longer makes people feel suffocated and depressed by the concrete walls of urban high-rise buildings, but instead feels fresh and elegant like a gable stone wall.
1 series alloys are more widely chosen in the application of marble granite aluminum plates because of their lower cost. They are generally used in indoor places such as waiting rooms, conference halls, reception lobbies, etc.
Specification:
Alloy:1060, 1050, 1100
Temper: H14
Thickness:2.0 mm to 4.0 mm
Location:mostly indoors, but also partially outdoors.
3000 series marble granite aluminum
Compared with marble, marble granite aluminum sheet panel is lightweight, rigid, strong, flame retardant, and meets fire protection requirements. It has flexible shape and structure and meets the needs of architectural decoration design.
3000 series alloys are more suitable for outdoor applications, such as building exterior walls, beams and columns, and theater exterior curtain walls, due to their good weather resistance and better stability than 1000 series alloys.
Specification:
Alloy:3003, 3004, 3005
Temper: H14, H16
Thickness:3.0 mm to 5.0 mm
Location: mostly outdoors
5000 series marble granite aluminum
Due to the unique high-strength characteristics of aluminum-magnesium-manganese, the 5000 series is widely used in places that require special structures such as bending, punching, and bending. It has strong impact resistance and high toughness and is suitable for a variety of special-shaped processing.
Specification:Alloy:5005, 5052
Temper: H32, H34
Thickness:3.0mm to 5.0mm.
Location:large venues exterior walls, roofs, indoor ceilings, etc.
Application of marble granite aluminum sheet panel
Outdoor
Large venues: airports, stadiums, theaters, museums, science and technology museums, convention and exhibition centers, high-speed railway stations, etc.
Commercial places: hotels, shopping malls, restaurants, cafes, etc.
Residential places: high-rise, medium- and low-rise residential exterior walls, villas, courtyard exterior walls, etc.
Office space: factory office area and workshop exterior walls, office buildings and office buildings of institutions, etc.
Indoor
Marble granite aluminum sheet panel has the common water-proof and corrosion resistance to chemical solvents of marble materials. At the same time, it has high fire-proof properties and will not produce toxic gases due to combustion in a fire. It has high surface gloss, is smooth and oil-free, and is easy to clean. It is widely used in indoor wall and ceiling decoration.
Large venues: airports, stadiums, theaters, museums, science and technology museums, convention and exhibition centers, high-speed railway stations, etc.
Commercial places: hotels, shopping malls, restaurants, cafes, etc.
Living places: lobby, corridors, hallways, etc. of residential buildings
Office space: internal walls of factory office areas, office building lobbies, floor walls, etc.
Worthwill's marble granite aluminum sheet panel
Compared with marble, imitation stone aluminum veneer is lightweight, rigid, strong, flame retardant, meets fire protection requirements, and has flexible structure, meeting the needs of architectural decoration design.Worthwill has domestic advanced roller coating production line and spray coating production line, which can meet the production needs of marble granite aluminum sheet panels of various sizes, with thickness ranging from 2mm to 5mm, and general width of 600/1000/1200/1500mm, which can be designed and produced according to customer's drawing requirements.
Coating Advantages
We have good roller coating and spray coating processing capabilitiesfor marble granite aluminum sheet panels. Ourimitation stonecoatings are available in a variety ofstyles, and can also be designed and produced according to customer pattern requirements.We use domestic and international first-class paint brands, the coating is stable, the color is beautiful, and there is no difference from the real stone texture in appearance.
Stable quality
As a top domestic imitation stone grain aluminum plate manufacturer, we have 17 years of production experience, a professional color coating technical team and production capacity to ensure the quality of imitation stone grain aluminum plates .We have a professional design team that can design imitation stone grain patterns according to customer requirements. At the same time, we have a professional multilingual sales team to support the smooth implementation of imitation stone grain aluminum plates in domestic and foreign engineering projects.
Contact Us
to providing all of our customers with the highest quality, best delivery times, and exceptional customer service on ourStone Texture Aluminum products. Contact us today to discuss the Stone Texture Aluminum optionsthat will meet your application requirements .
